How to Repair a Cracked Foundation Wall with Epoxy – 2026 Guide
- William McKracherne
- Aug 11
- 6 min read
Cracks in your foundation can feel like a ticking time bomb. They let water in, shift walls, and cause doors to stick. You can stop the damage yourself. This guide shows how to repair a cracked foundation wall with epoxy, from inspection to finishing.
We’ll walk through each step, give you tools, tips, and safety notes. By the end you’ll know how to repair a cracked foundation wall with epoxy like a pro.
Here’s the research hook we used to pick the best steps.
An analysis of 20 foundation‑wall epoxy repair steps from 5 sources reveals that only 40% of the steps include any key specifications, and the top‑ranked “Interior and Exterior Repairs” entry offers no details at all , a surprising gap for the supposed all‑in‑one solution.
Table of Contents
Step 1: Inspect the Crack and Assess Severity
First, look at the crack. Is it wide? Does it keep getting bigger? A simple ruler can tell you the width. If it’s over 1/4 inch, call a pro.
Next, note the direction. Vertical cracks often mean settlement. Horizontal cracks can mean pressure from soil. Diagonal cracks are a mix.
Use a flashlight. Shine it along the crack. Look for moisture stains. Those tell you water is getting in.
Document everything. Take photos. Write down the length, width, and any changes over time. This record helps you and any contractor you may hire later.
Now check the surrounding walls. Are doors sticking? Are floors uneven? Those are signs the crack is structural.
Here’s what I mean: If a door won’t close fully, the wall may be moving.
When you have the data, you can decide if DIY is safe.
Pro Tip:Use a thin putty knife to probe the crack depth. If the tool goes in easily, the crack is shallow and may be a good DIY candidate.
Bottom line:A clear inspection tells you if you can fix it yourself or need a pro.
Step 2: Choose the Right Epoxy System and Gather Tools
Choosing the right epoxy matters. You want a product that bonds stronger than concrete.
Two‑part injection kits are the gold standard. They come with resin, hardener, ports, and a surface seal.
Low‑viscosity epoxy works best for hairline cracks. It flows deep into the void.
For wider cracks, a gel‑type epoxy gives extra strength.
Check the label for temperature range. Most kits need the concrete to be above 40°F (4°C) for good cure.
Now gather tools: a wire brush, safety glasses, nitrile gloves, a mixing stick, a caulking gun, and a set of injection ports.
Don’t forget a drop cloth to protect floors.
Key Takeaway:Pick a two‑part low‑viscosity epoxy for structural cracks and gather basic safety gear.
Bottom line:The right epoxy and tools set you up for a solid repair.
Step 3: Mix Epoxy Correctly , Ratios, Temperature, and Safety
Mixing is where many DIYers slip up. Follow the manufacturer’s ratio exactly. Most kits call for 1:1 by volume.
Use a clean mixing cup. Pour resin first, then hardener. Stir slowly to avoid bubbles.
Temperature matters. If it’s cold, warm the epoxy in a bucket of warm water for a few minutes. Do not heat above 120°F (49°C) or you’ll ruin the chemistry.
Wear nitrile gloves. Epoxy can skin you.
Work in a well‑ventilated area. Open a window or use a fan.
Mix for at least two minutes. Scrape the sides and bottom of the cup.
Once mixed, you have about 10‑15 minutes before the epoxy starts to set. That’s your working window.
24‑48 hourscure time needed for full strength
Bottom line:Precise mixing, correct temperature, and safety gear keep the epoxy usable.
Step 4: Apply Epoxy to the Crack , Injection Technique
Start by placing injection ports. Space them 6‑12 inches apart, depending on crack length.
Secure each port with the surface paste. Make sure the port base sits flush.
Connect the hose to the lowest port first. This lets the epoxy flow upward.
Begin injecting slowly. Use low pressure , about 20 lb of force on the gun.
Watch the epoxy appear at the next port. When you see flow, cap the lower port and move up.
Spend 2‑4 minutes per port. That timing comes from radonseal’s instructions.
When all ports are filled, let the epoxy sit for a few minutes before capping the tops.
Pro Tip:If the epoxy seems too thick, warm the cartridge in warm water for 5 minutes to improve flow.
Bottom line:Slow, low‑pressure injection fills the crack from bottom to top.
Step 5: Allow Proper Curing Time and Verify Bond Strength
After injection, the epoxy needs time to cure. Most products need 24‑48 hours for full strength.
Temperature speeds up cure. Warm rooms (70‑80°F) help the resin set faster.
Check the cure by gently tapping the surface. It should feel hard.
For a stronger test, use a hammer to tap near the repaired area. No vibration means the bond is solid.
If you need to verify strength, a pull‑out test with a small screw can be done, but most homeowners rely on visual check.
Remember, the epoxy may still be sensitive to moisture for the first 48 hours. Keep the area dry.
Key Takeaway:Allow at least 24 hours, preferably 48 hours, before putting load on the wall.
Bottom line:Proper cure time ensures the repair holds under stress.

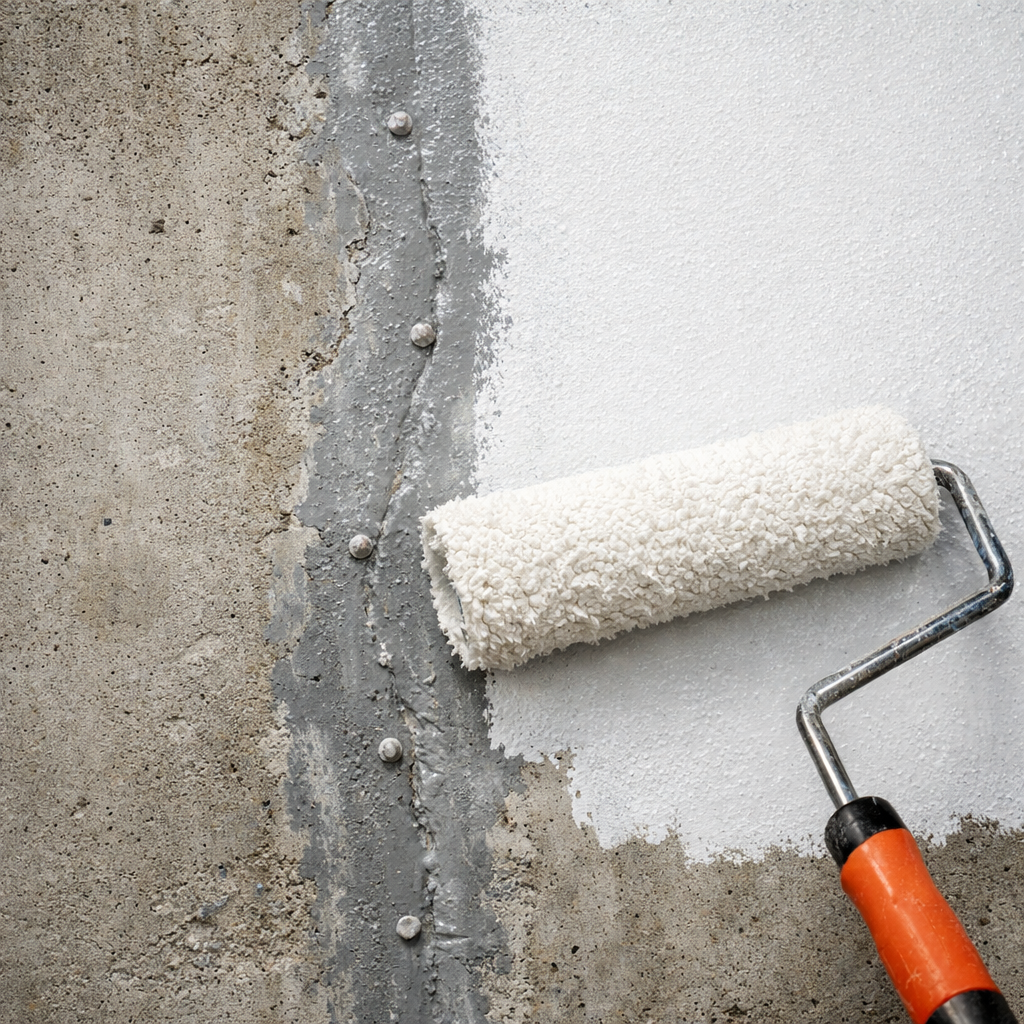

Step 6: Finish the Repair , Seal, Paint, and Inspect
Once the epoxy is fully cured, remove the injection ports. Use a hammer and a chisel gently.
Smooth the surface with a grinder or sandpaper. You want a flat finish ready for paint.
Apply a concrete sealant over the repaired area. This adds a waterproof layer.
After the sealant dries, you can paint the wall to match the rest of the basement.
Do a final inspection. Look for any missed spots or uneven seal.
Here’s what I mean: If the paint peels early, the seal may not have fully cured.
Pro Tip:Use a low‑sheen interior paint. It resists moisture better than high‑gloss.
Bottom line:Sealing and painting protect the epoxy and give a tidy look.
Step 7: When to Call a Professional and Cost Considerations
If the crack is wider than 1/4 inch, or if you see bowing walls, call a structural engineer.
Professional repair can cost $100‑$200 per linear foot. DIY kits range $50‑$150 for a typical wall.
Consider hidden costs: you may need to warm the basement, rent a heater, or fix drainage.
When in doubt, get a free inspection from a reputable contractor. LGFMH Construction offers a no‑obligation check.
Remember, a bad repair can cost more in the long run.
Key Takeaway:Call a pro for large, moving, or water‑filled cracks; DIY works for stable, narrow cracks.
Bottom line:Weigh the crack size, movement, and budget before deciding DIY or pro.
Conclusion
Repairing a cracked foundation wall with epoxy can save you money and protect your home. Start with a solid inspection, pick a good two‑part epoxy, mix it right, inject slowly, let it cure, then seal and paint. If the crack looks big or keeps moving, bring in a professional like LGFMH Construction. With the right steps, you’ll stop water, restore strength, and keep doors opening smooth.
Ready to start? Grab your kit, follow the steps, and enjoy a stronger, drier basement.
FAQ
Can I use epoxy on a wet crack?
Epoxy needs a dry surface to bond. If the crack is wet, dry it with a heater or de‑humidifier first. Some cold‑weather epoxies can handle slight moisture, but best results come from a dry crack.
How long does the epoxy stay flexible?
Epoxy hardens fully after cure. It does not stay flexible like polyurethane. That’s why it’s used for structural repairs, not for cracks that keep moving.
Do I need a special ventilator?
Work in a well‑ventilated space. Open a window and use a fan. Epoxy fumes can be strong, so a respirator is a good safety extra.
What if the crack widens after I seal it?
A widening crack means ongoing movement. That’s a sign to call a structural engineer. Epoxy can’t stop active movement.
Can I paint over epoxy?
Yes. Once the epoxy and sealant cure, a latex interior paint works well. Use a primer if the wall was previously unpainted.
How much epoxy do I need?
Calculate the crack volume: length × width × depth. Most kits list the volume they fill. Buy a kit that covers a little more than your estimate.
Is a DIY kit safe for tall walls?
For walls over 8 feet, you may need extra ports and longer injection time. Follow the kit instructions and consider a professional for very tall walls.
Will the repair stop radon gas?
Epoxy seals the crack, which can reduce radon entry. However, a full radon mitigation system is still needed if radon levels are high.
